Specifications

Color: Blue
Style: Modern
Shape: Rectangular
Material: Aluminum Alloy, Stainless Steel, Sheet Metal
Process: Spray Painting
Power Source: Corded Electric
Plug Type:US Standard
Mounting Type: Tabletop
Display: LCD
Operation Mode: Manual
Heating Element: Stainless Steel Heating Tube

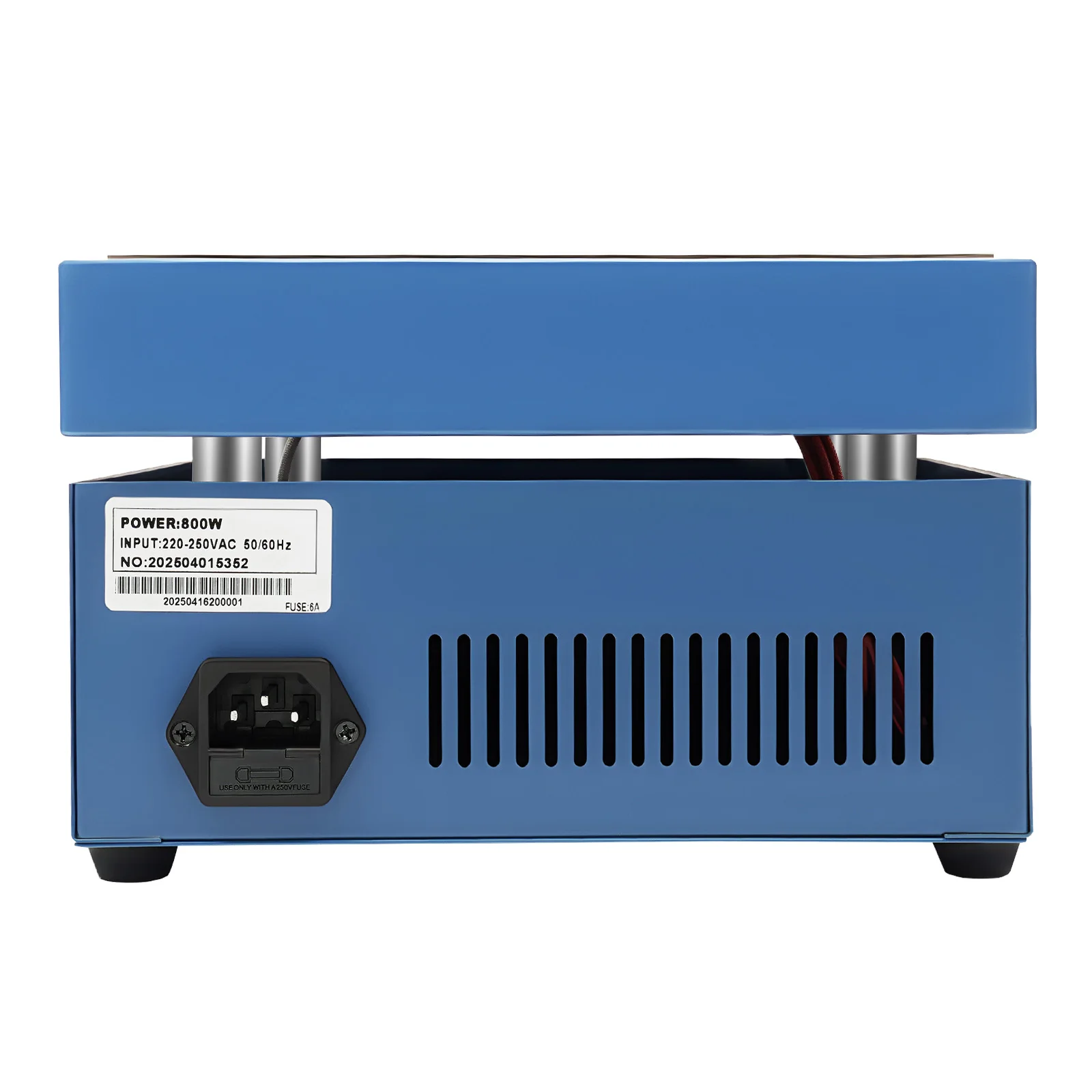

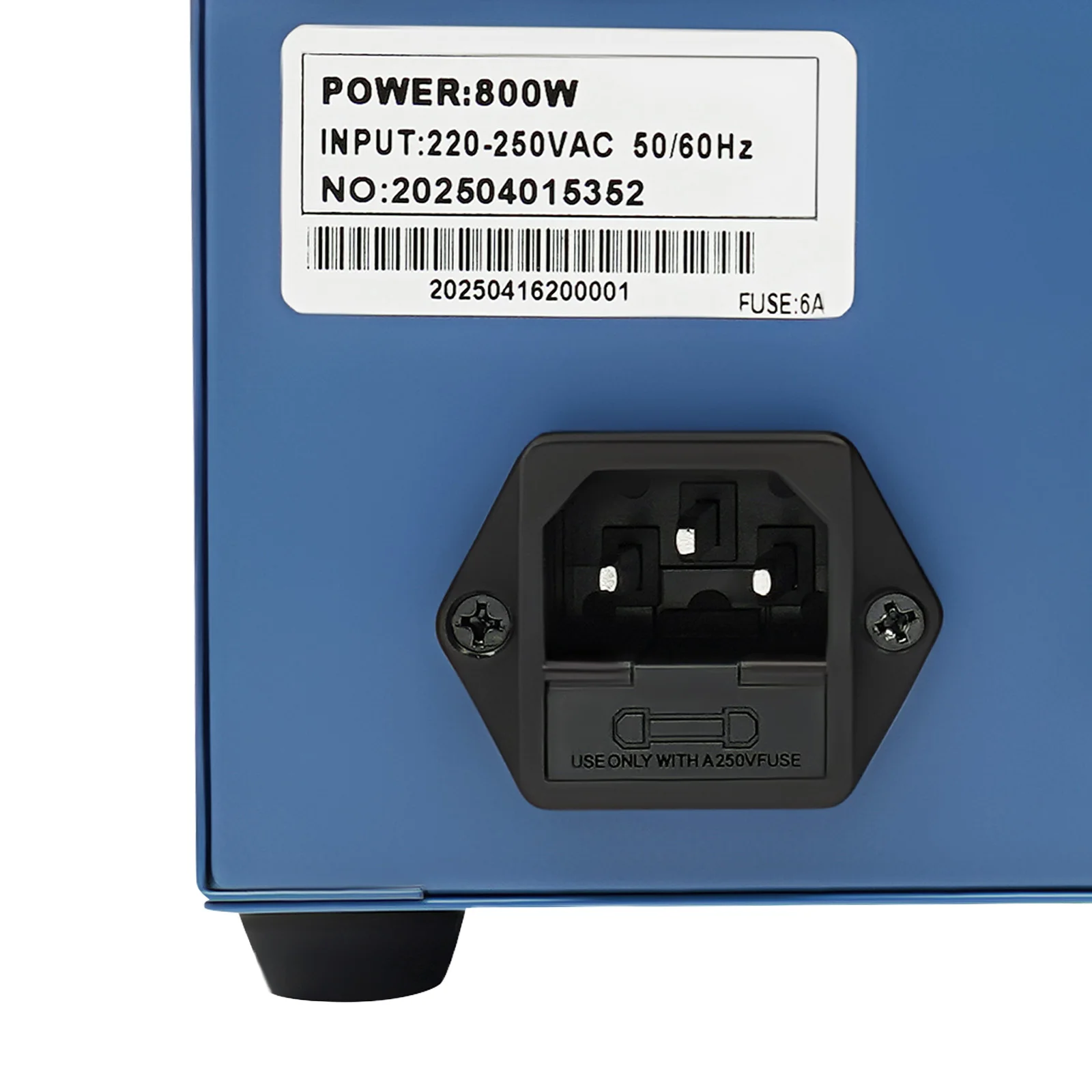

Input: AC 110V, 50/60Hz
Power: 800W
Fuse: 6A
Precision: ±2℃/±35.6℉
Temperature Range: 50~400°C/122~752°F
Power Cord Length: 1.8m/5.91ft

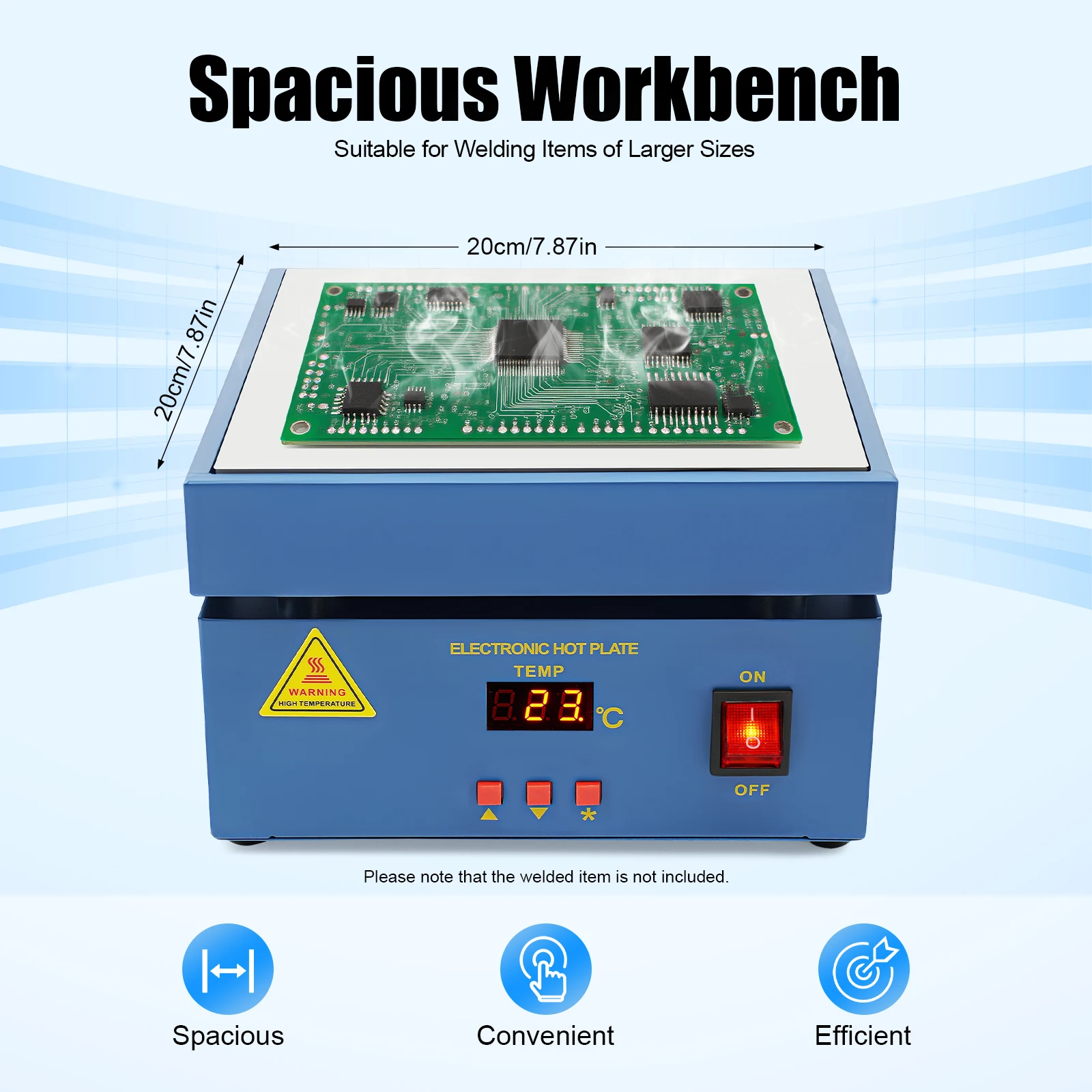

Heating Area Size(L*W): 20*20cm/7.87*7.87in

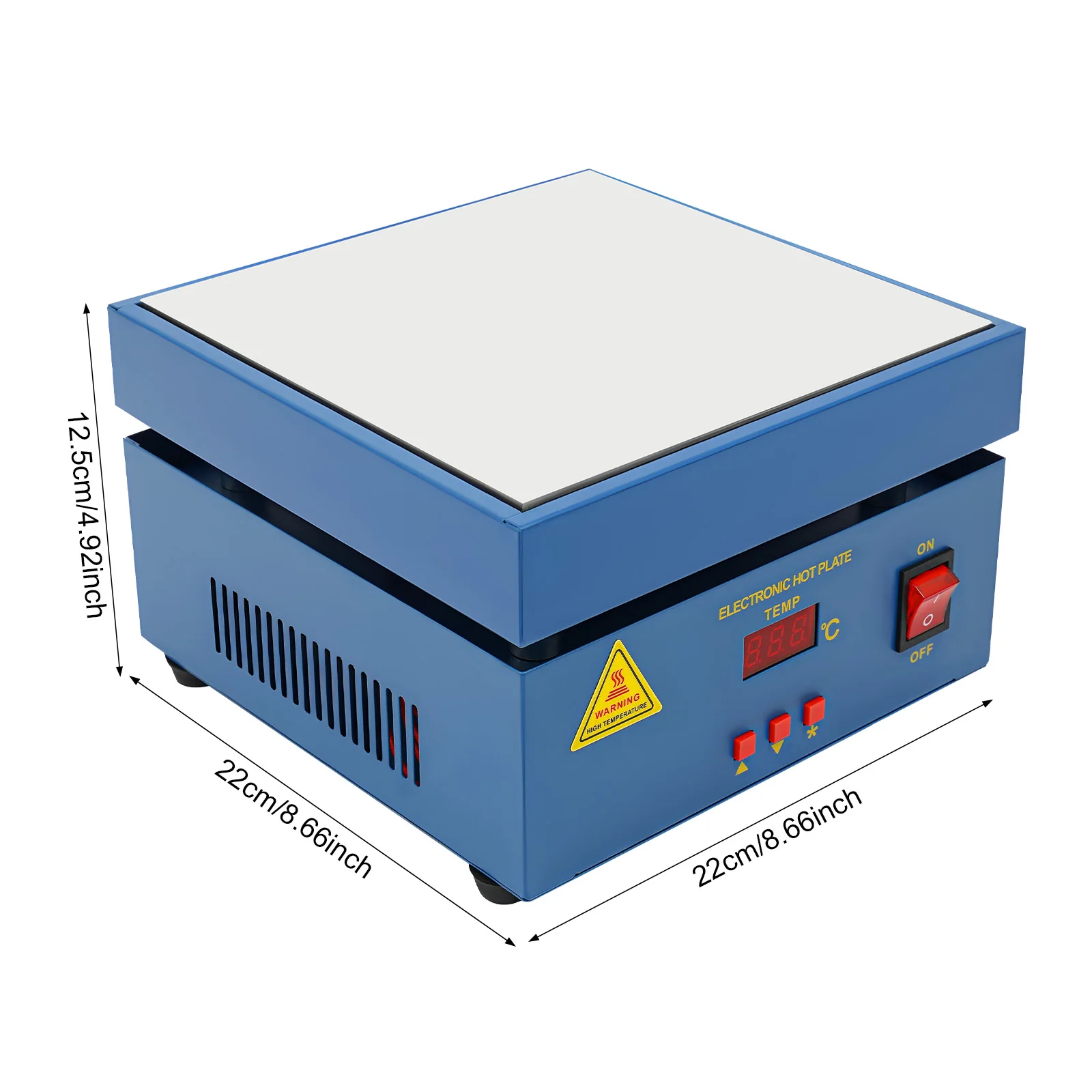

Product Size: 22*22*14.5cm/8.66*8.66*5.71in
Package Size: 28*28*22cm/11.02*11.02*8.66in
Gross Weight: 3.5kg/7.72 lbs
Net Weight: 3.33kg/7.34 lbs

Key Features

Build to Last: It is made of high-class aluminum alloy, stainless steel, and sheet metal, treated with a spray painting process, which is deformation-resistant, heat-resistant, and has a long service life.

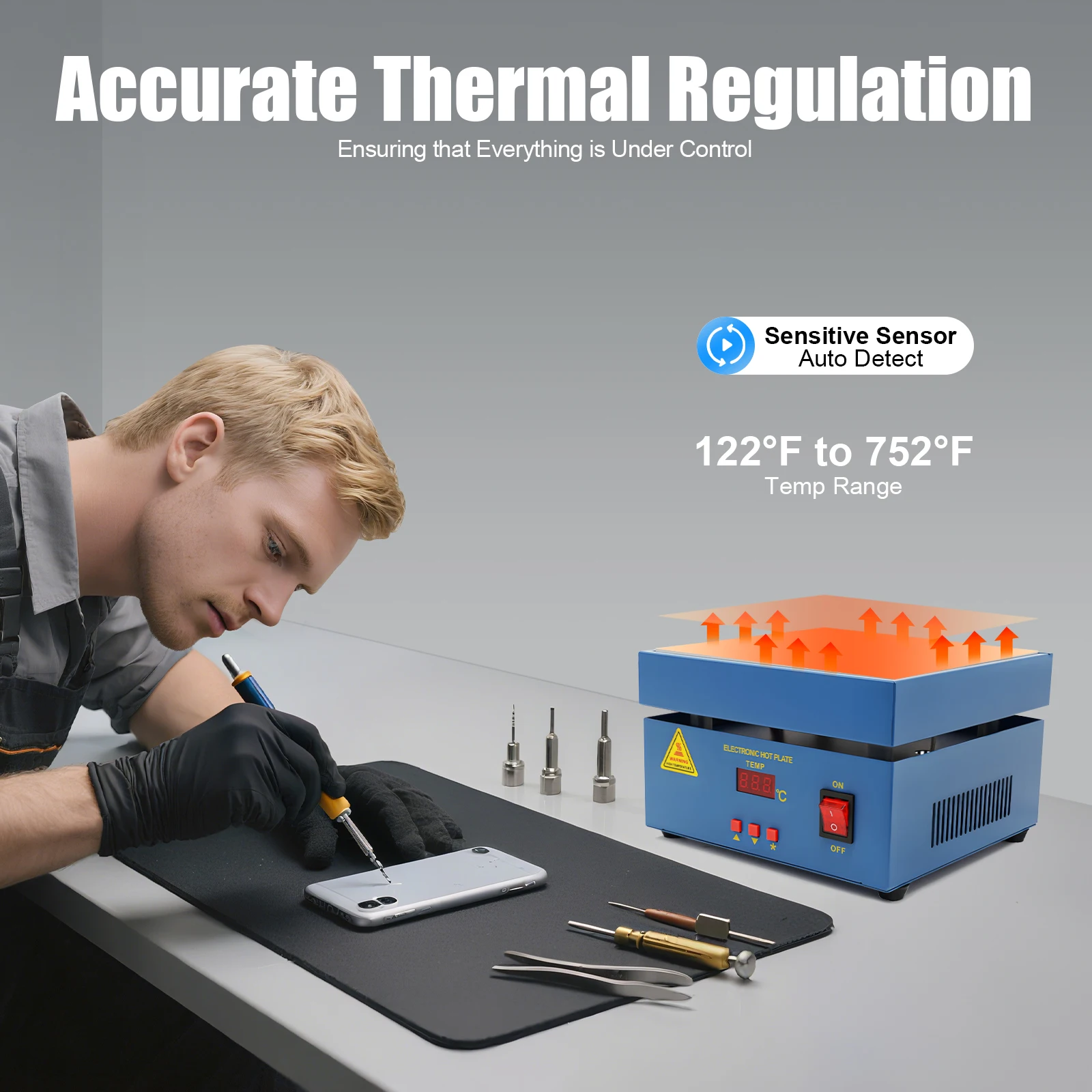

Precise Temperature Control: It has a built-in high-precision sensor with an automatic sensor detection function for more accurate temperature control, and you can adjust the temperature range(122~752°F) as needed to meet your different needs.

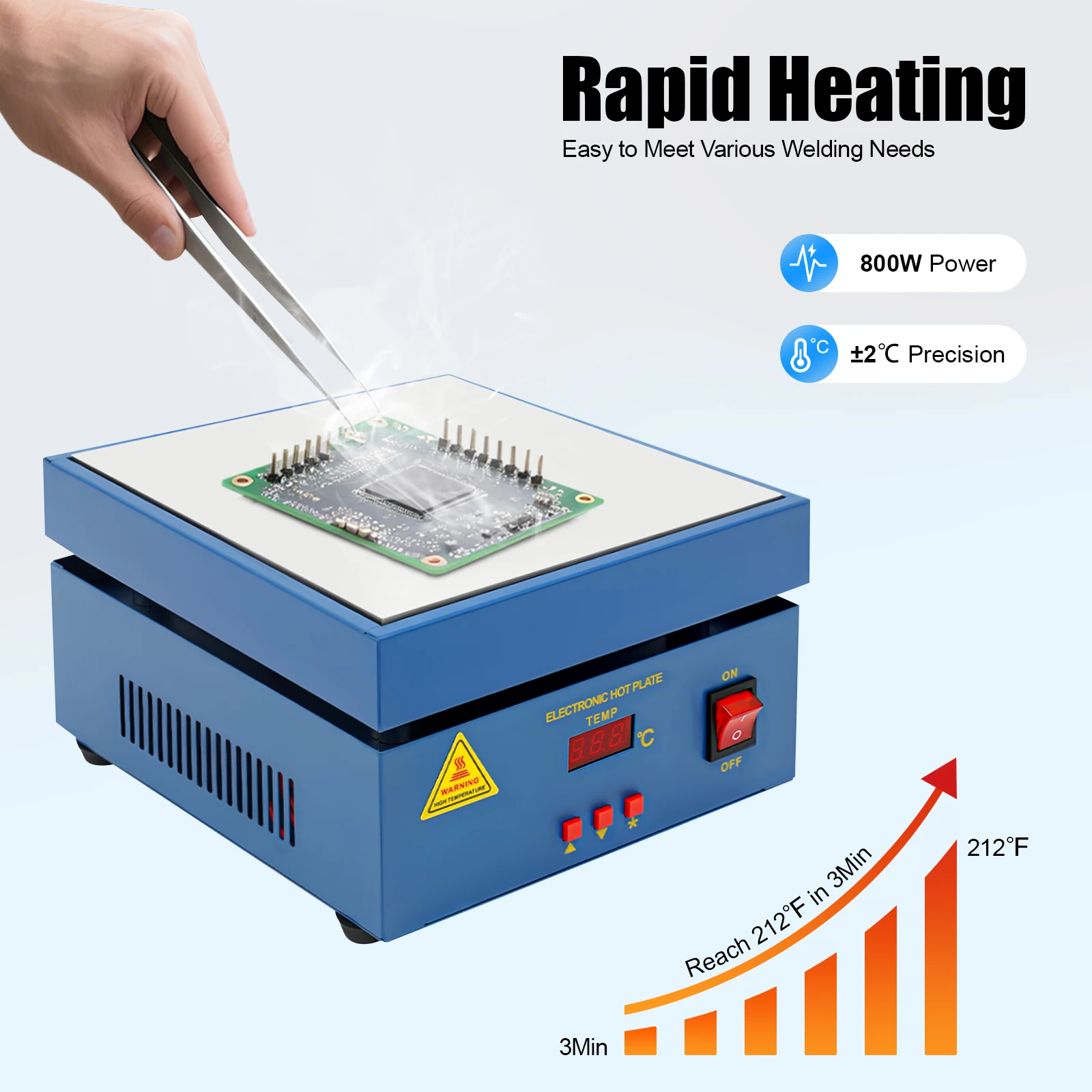

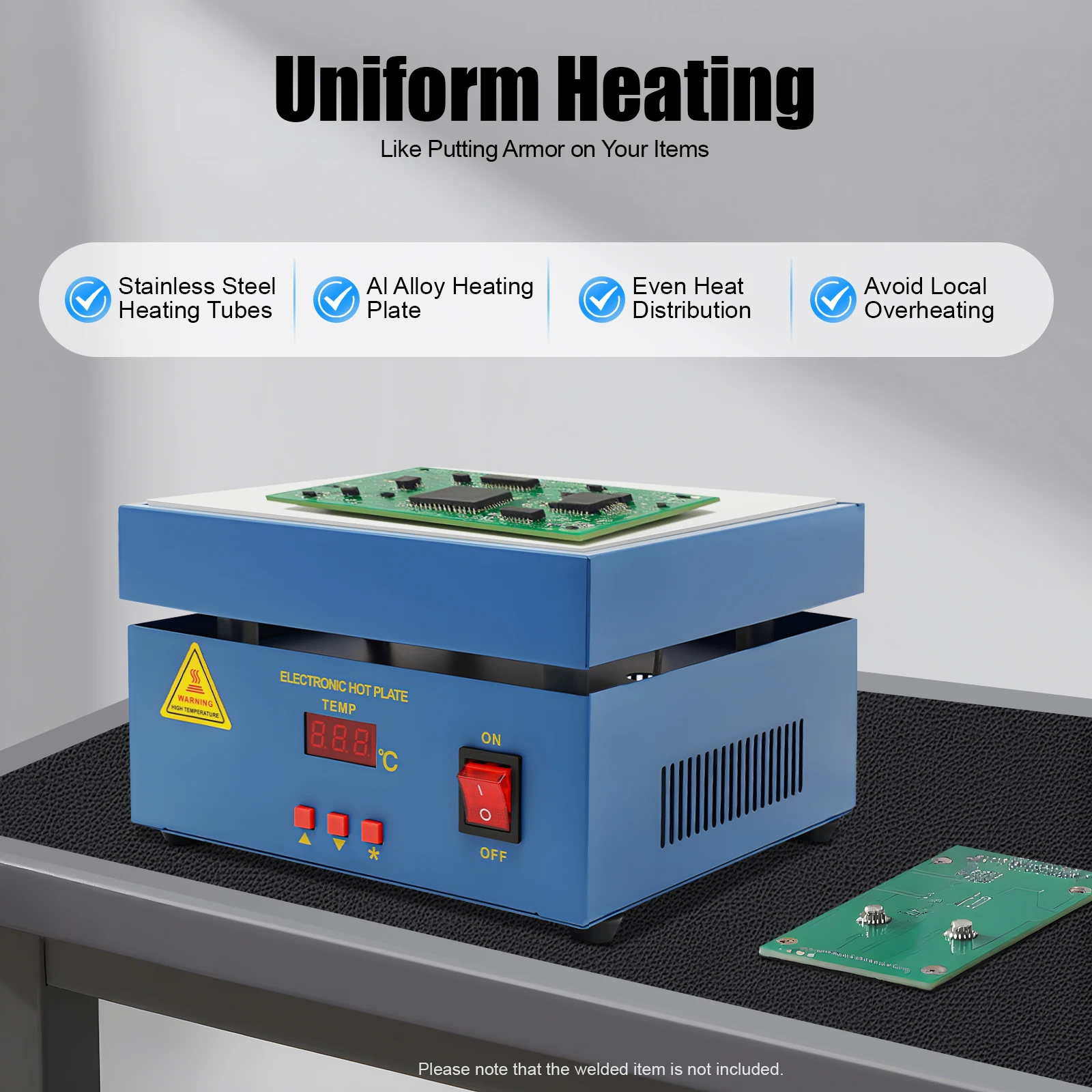

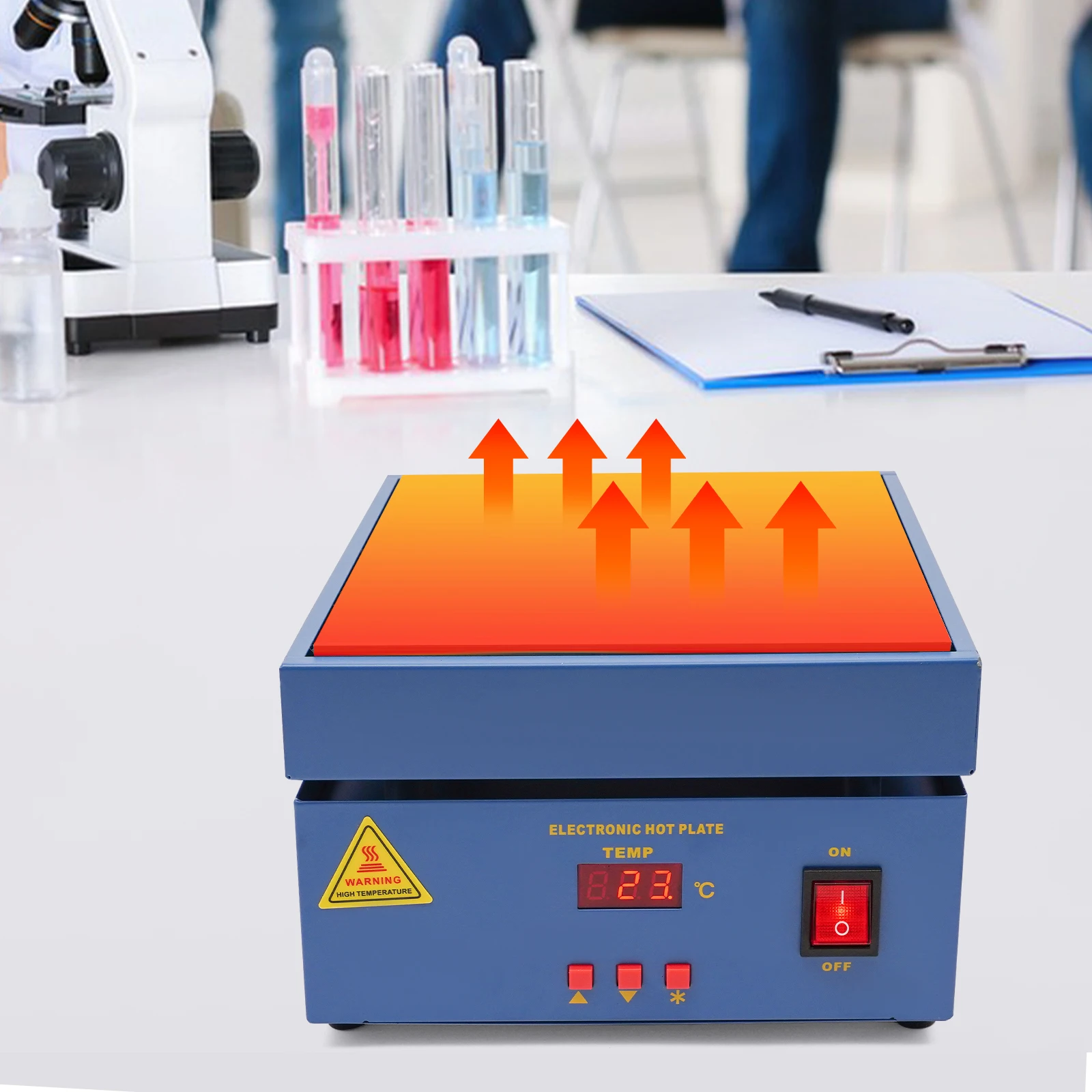

Fast and Even Heating: It adopts high-class stainless steel heating tubes to ensure even heat distribution and avoid local overheating. The aluminum alloy heating plate with excellent thermal conductivity and a high power of 800W can raise the temperature to 212℉ in three minutes, achieving a fast and uniform heating effect.

High Safety: It adopts an anti-scald edge design to effectively prevent burns. The built-in fuses, overload, and over-temperature protection can ensure your safety during use.

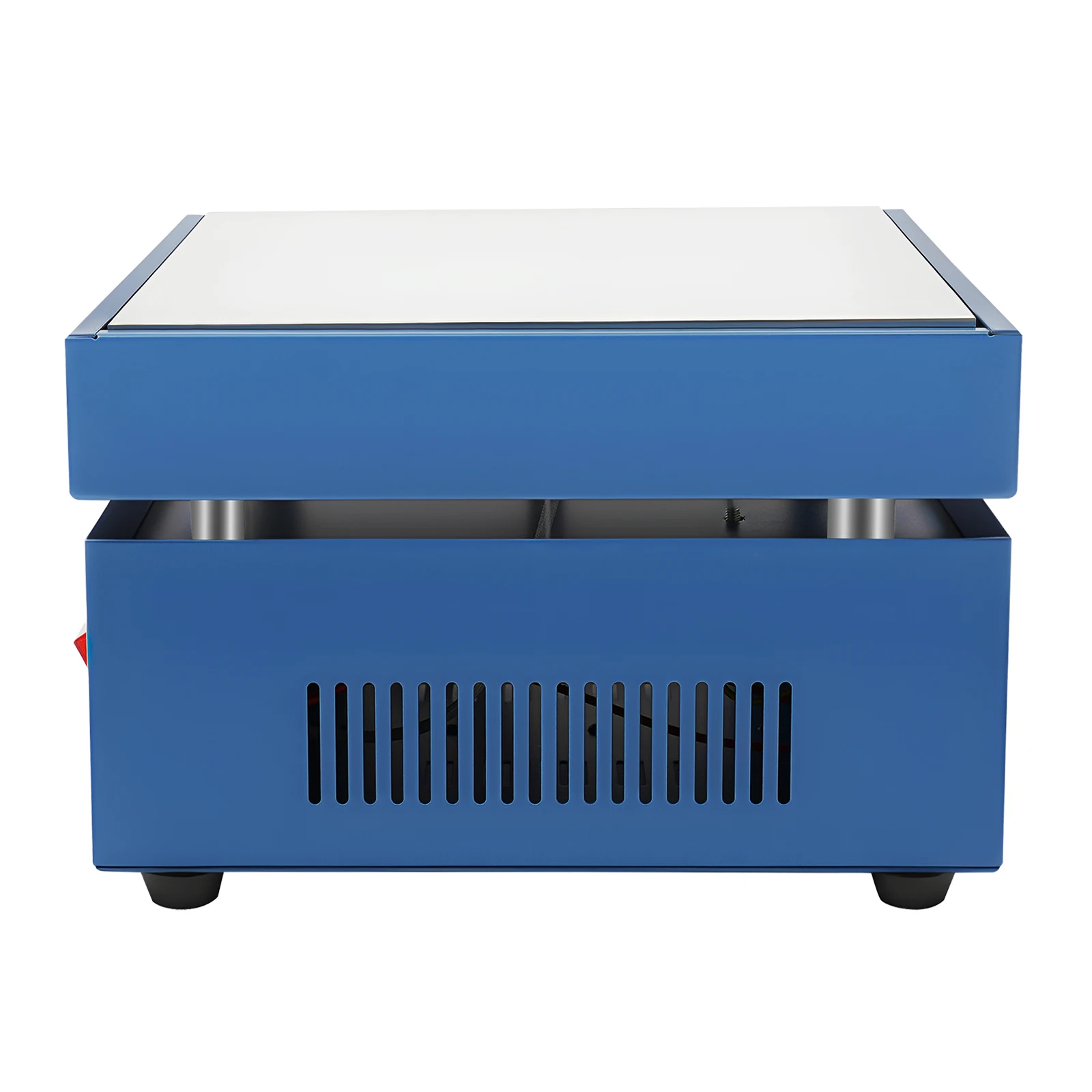

Good Heat Dissipation Effect: The uniformly distributed cooling holes can dissipate heat effectively and promptly, and protect the machine from burning out due to long-term use.

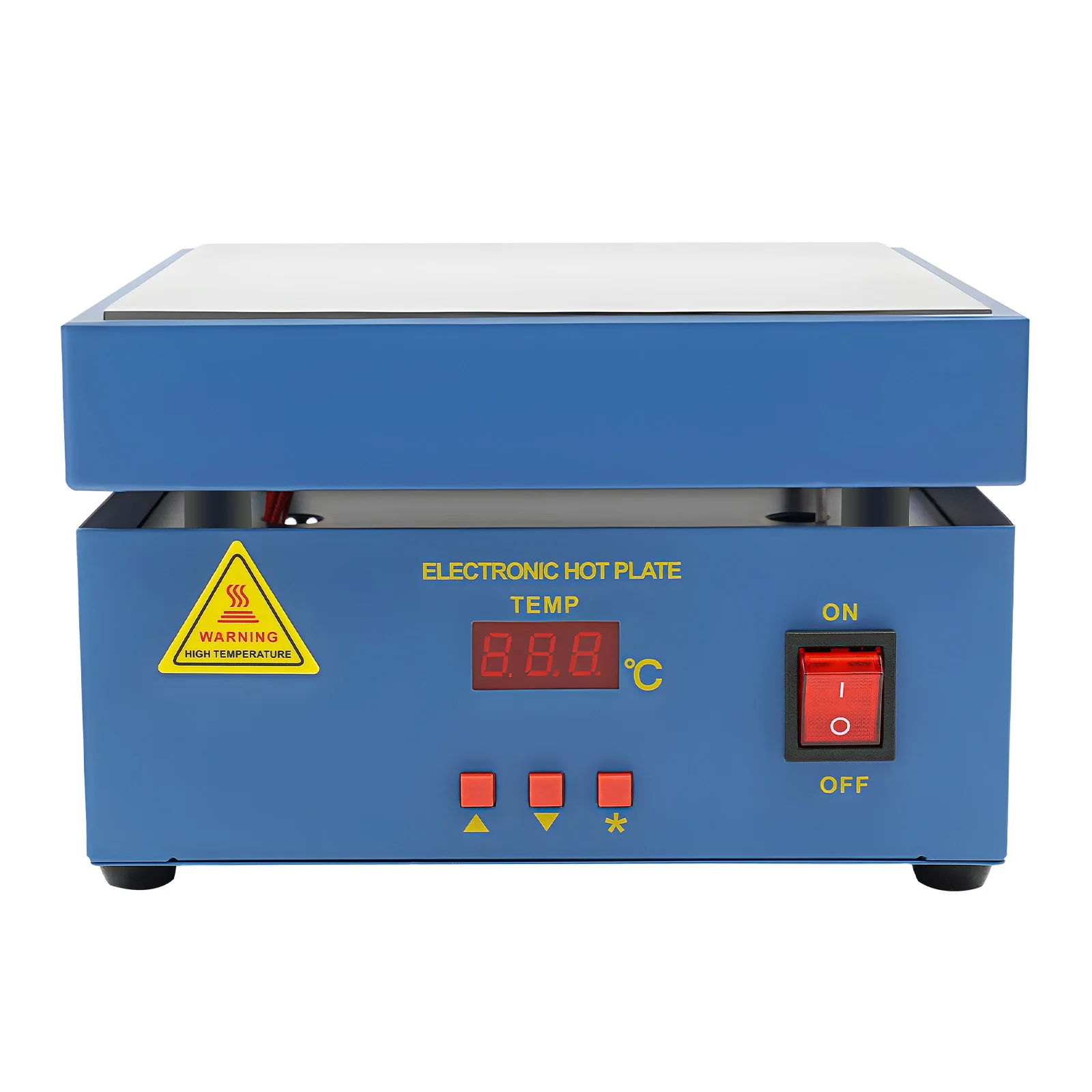

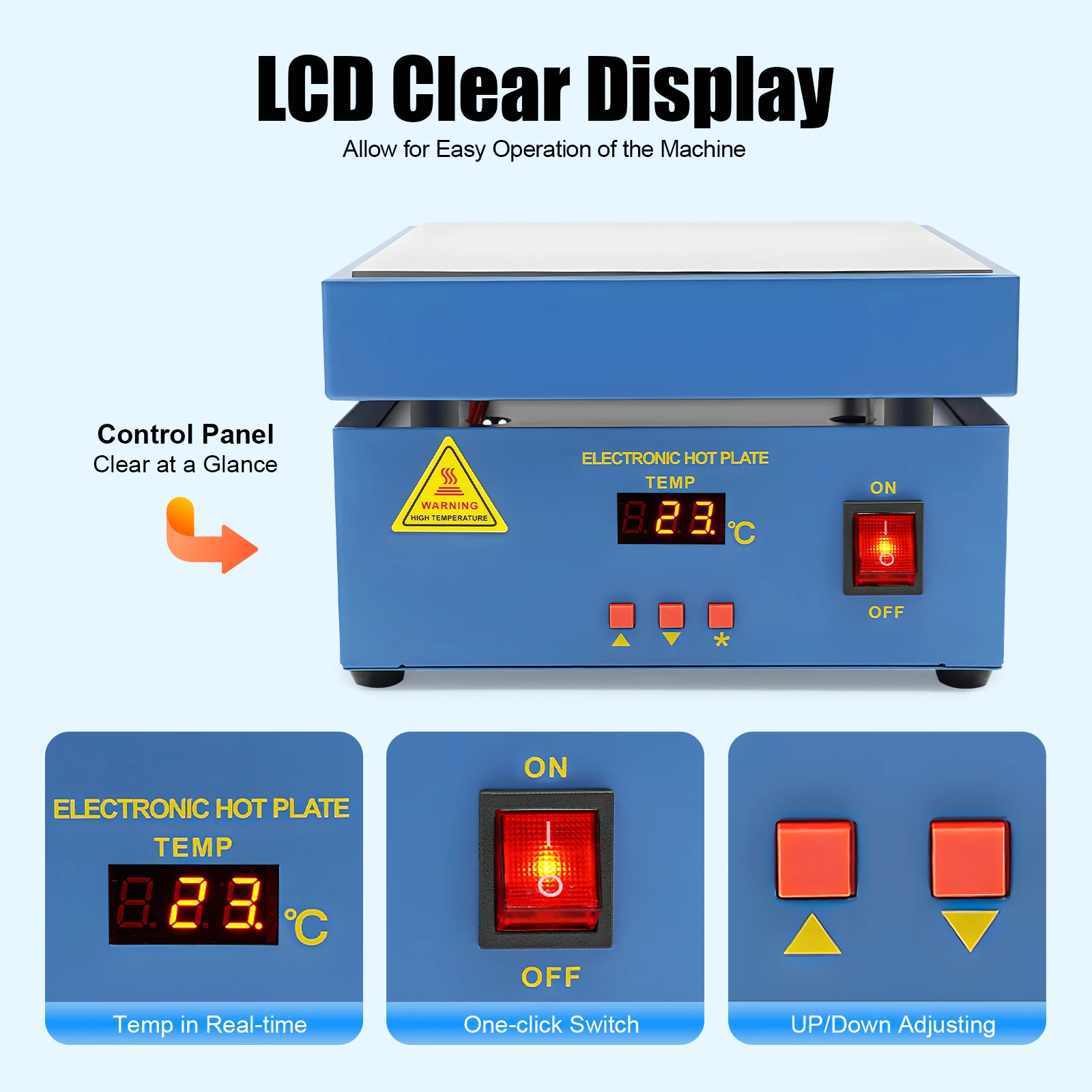

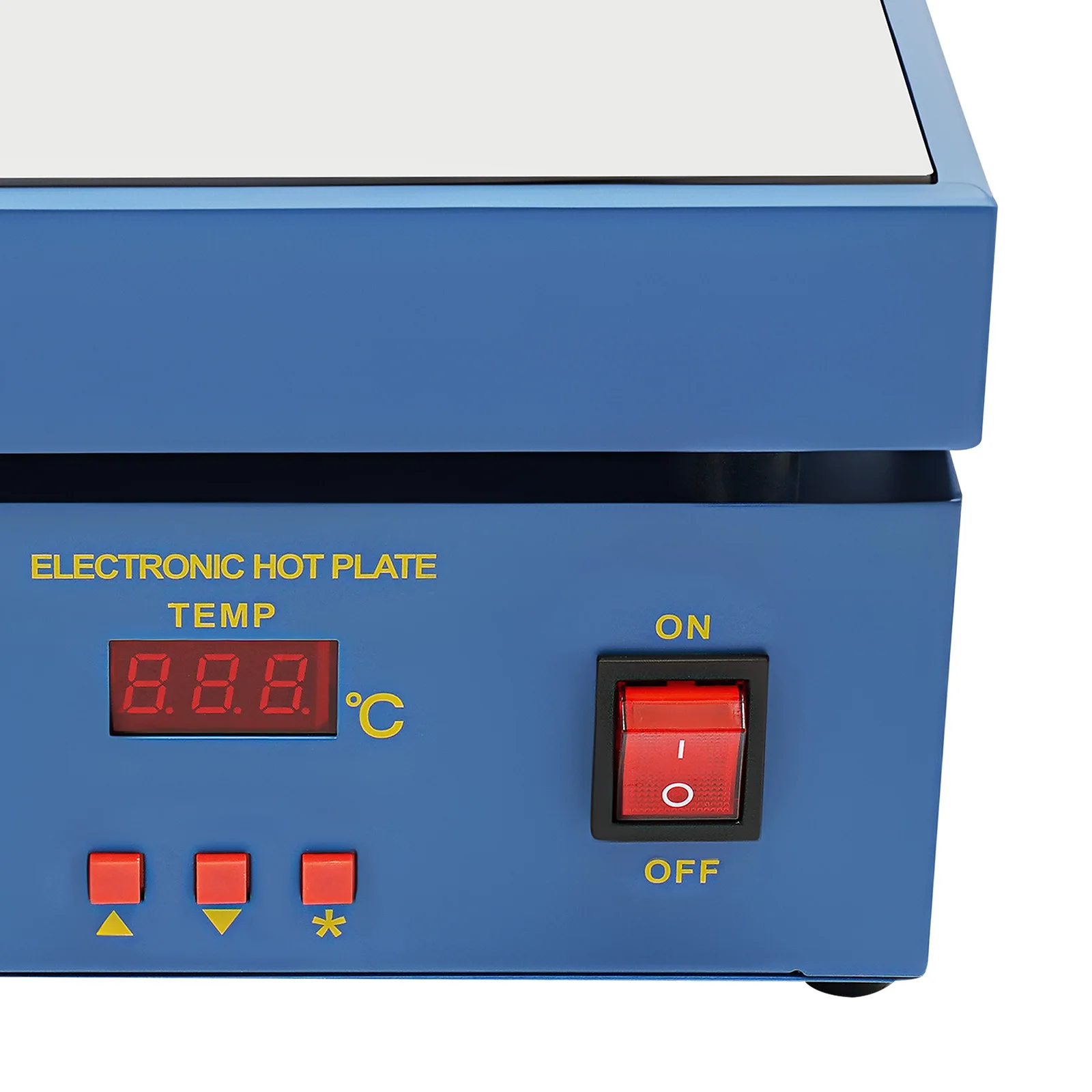

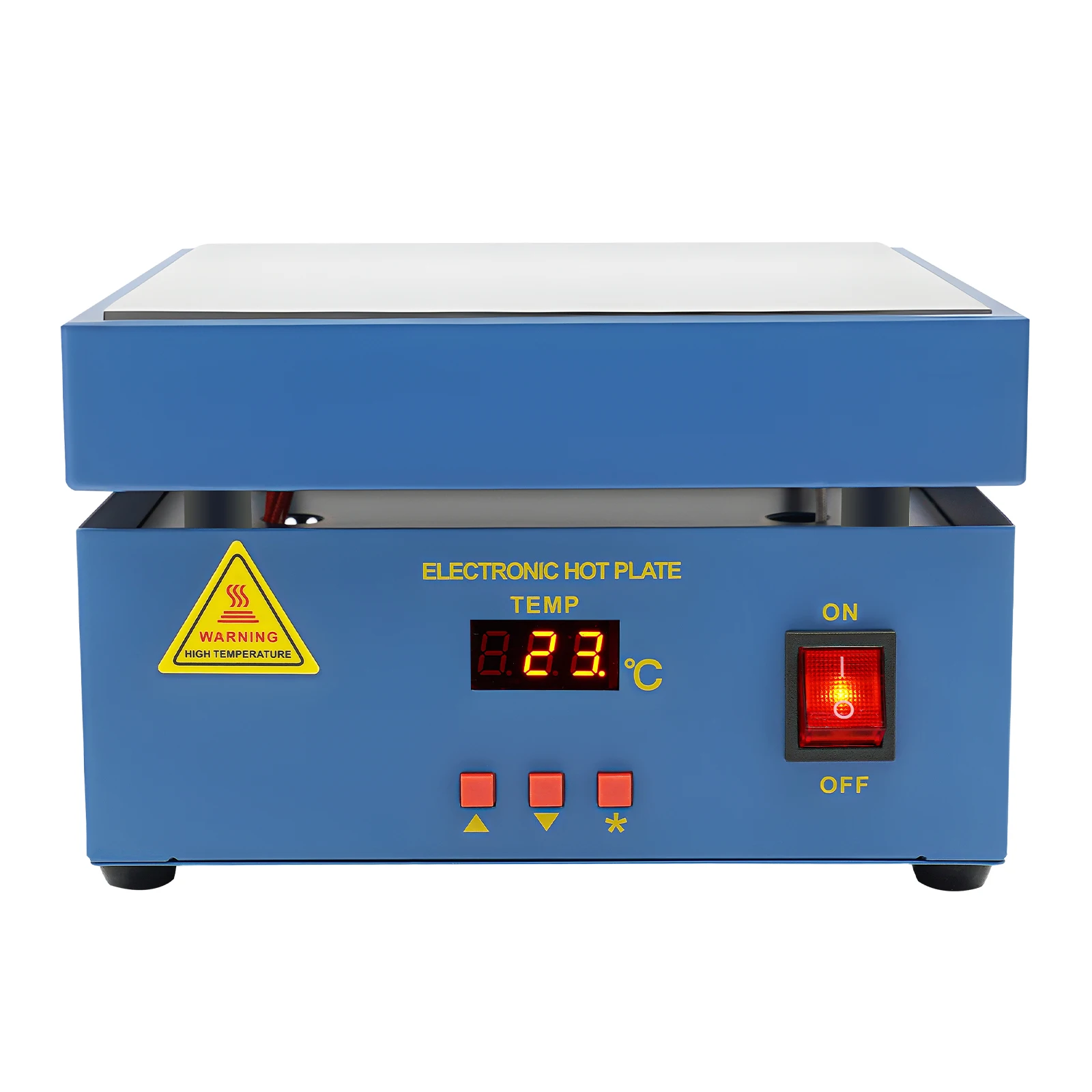

Simple Operation: A clear control panel makes the functions clear at a glance, the LCD shows the temperature in real-time, and the one-click switch allows you to easily operate the machine.

Labor-saving Cleaning: The smooth surface and simple structure allow for easy cleaning with a soft cloth.

Details

Foot Pads: They can effectively prevent slipping and enhance the stability of product use.
Smooth Edges: They can prevent you from scratching and improve the safety of use.
Long Power Cord: A 5.91ft power cord can provide you with more usage locations, making it more convenient to use.

Application

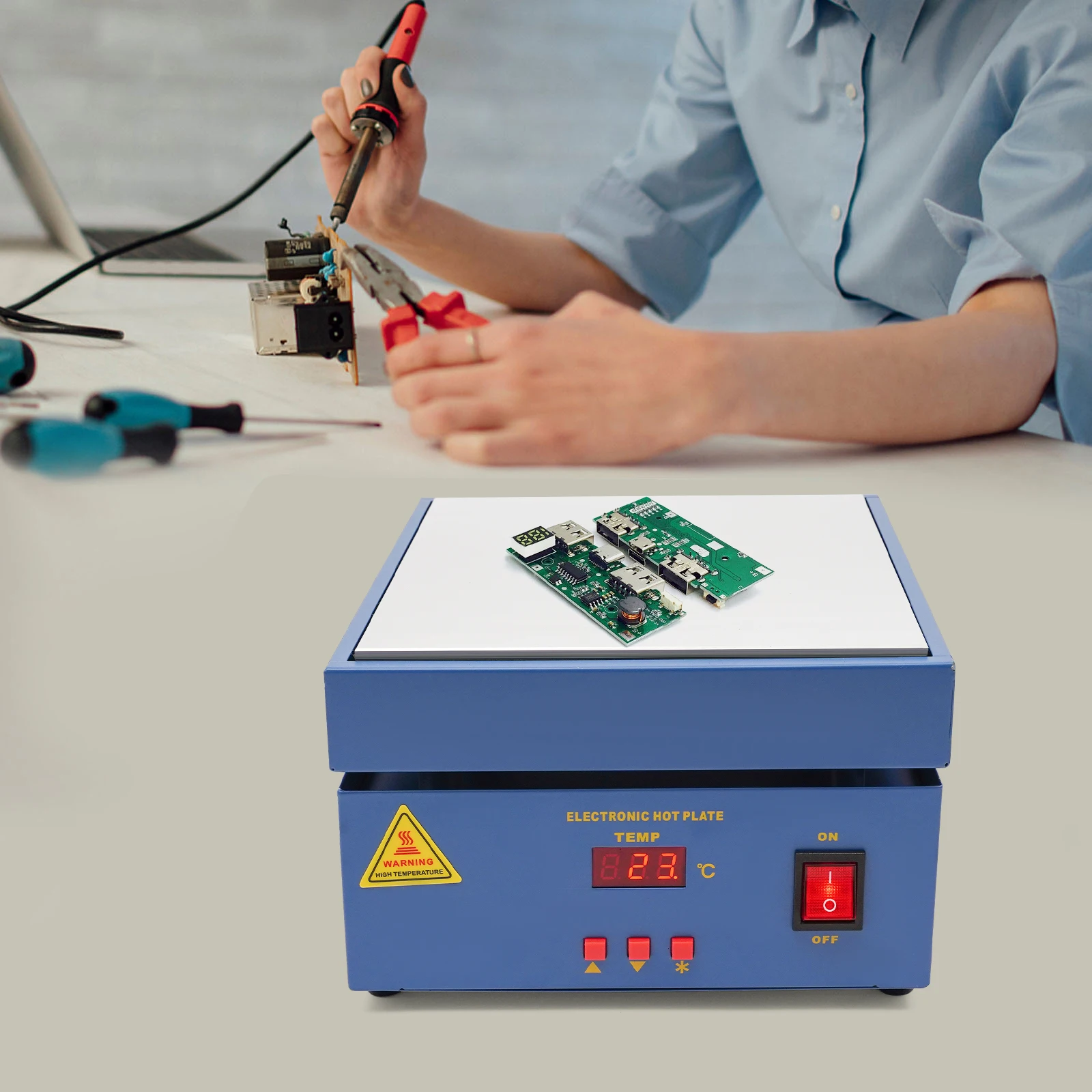

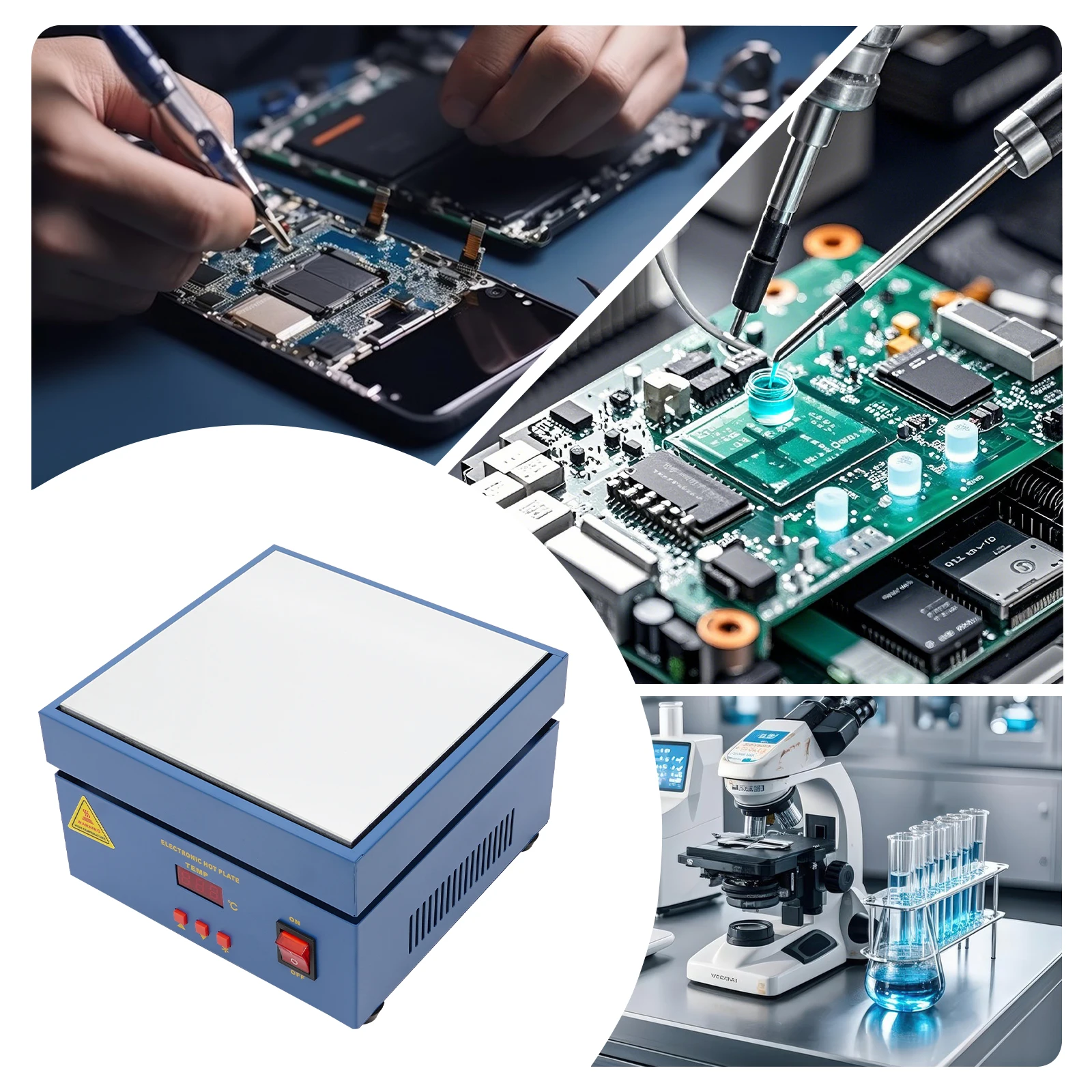

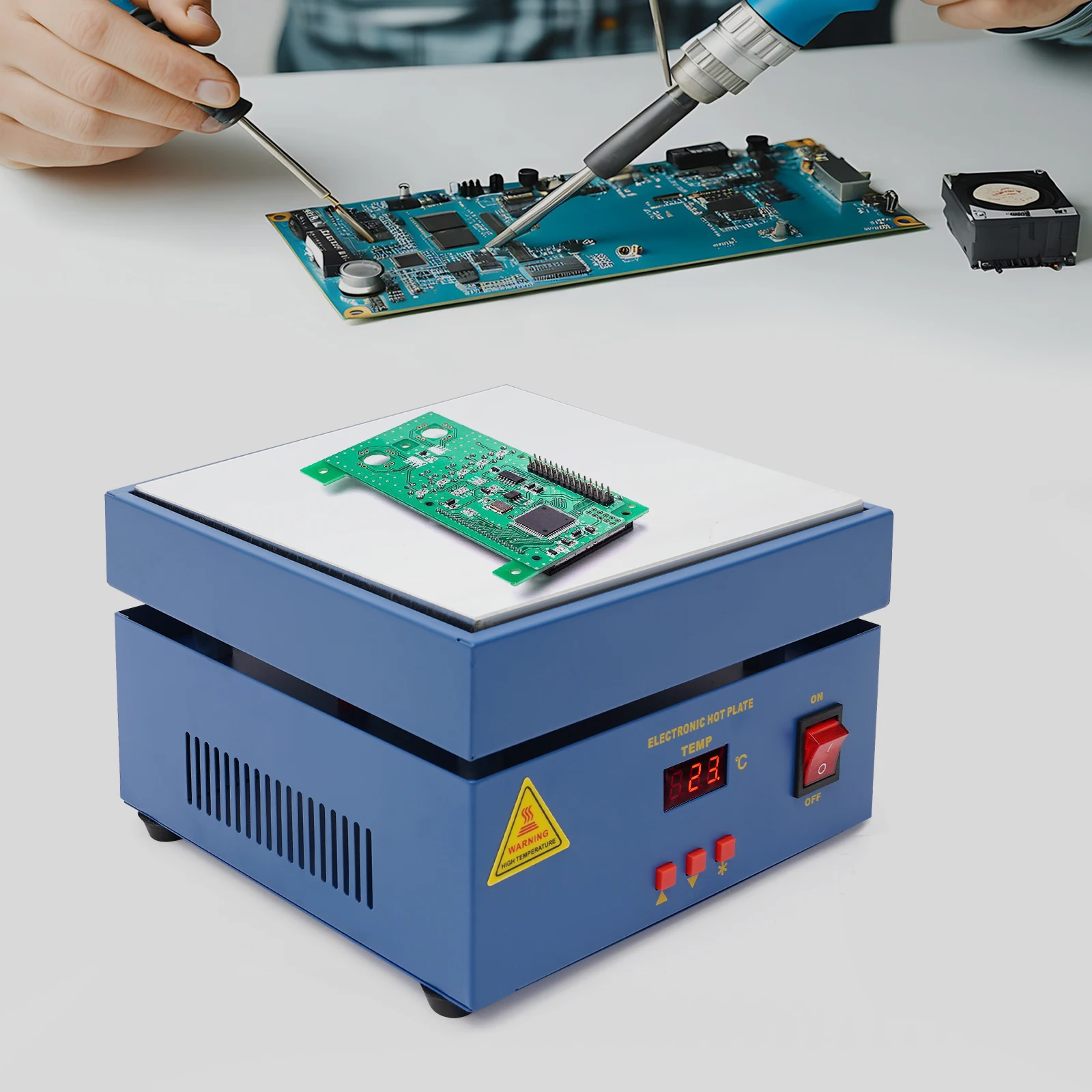

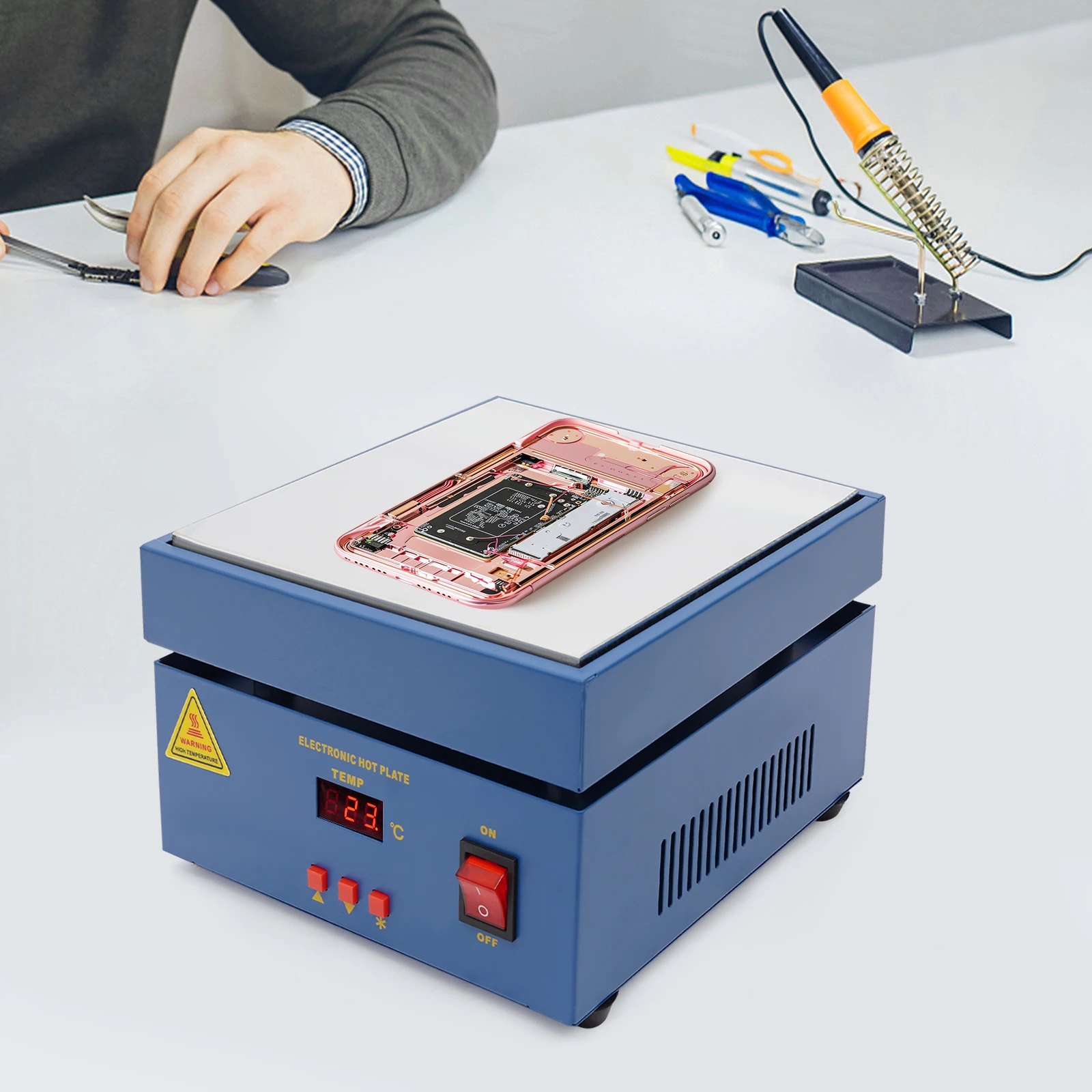

It is widely used in research institutes such as biology, electronics, and medicine, as well as in component heating operations, SMD reconstruction operations, PCB disassembly, and soldering operations. It is also used for cigarettes, poker boxes, cosmetics, perfume, electronic products, and other small sealed film packaging. It is suitable for films such as BOPP films and PVC heat-sealing films.

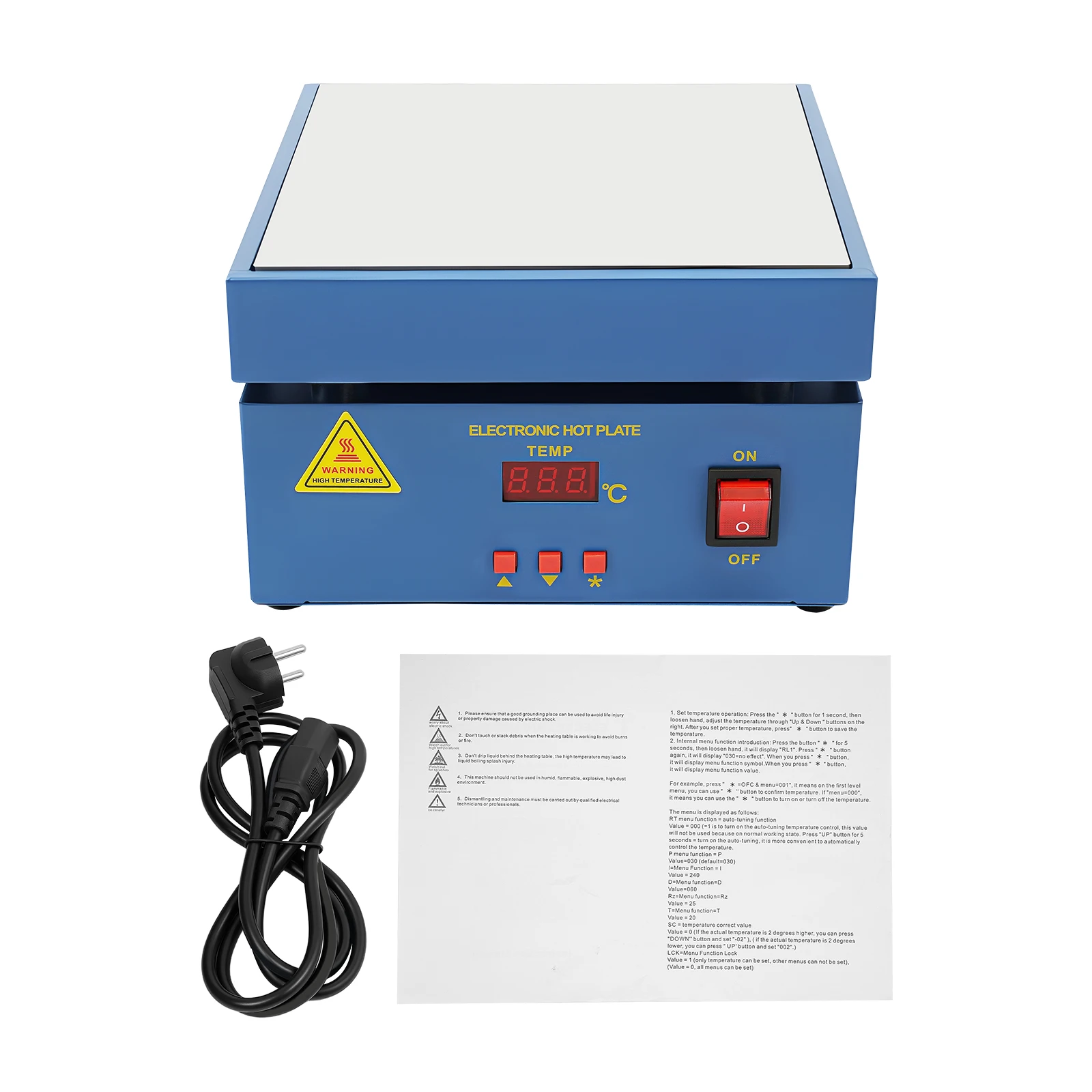

Package Included

1* Electronic Hot Plate

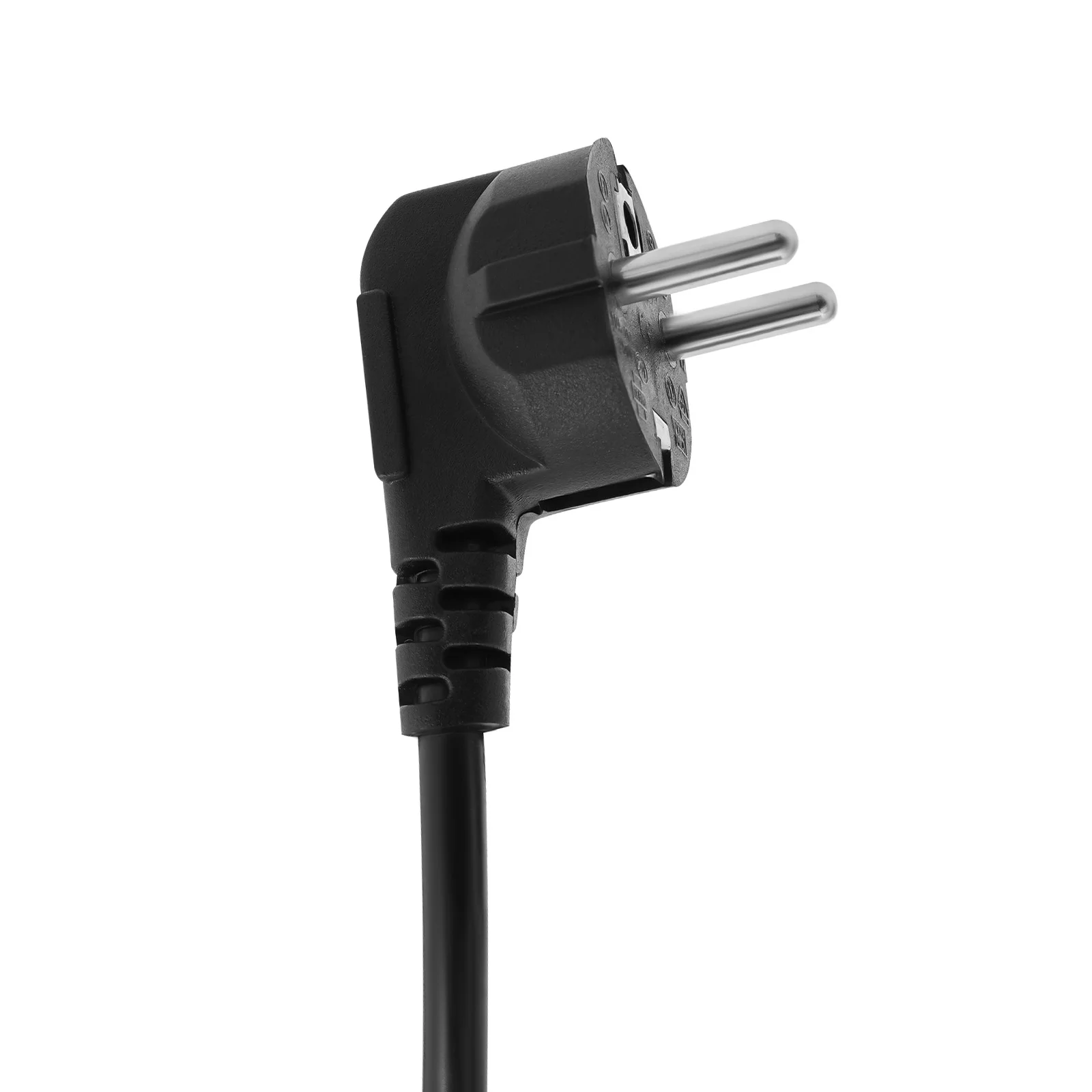

1* Power Cord
1* English Manual

Notes

1.Please note that the workbench where the product is placed should be flat and the material must be heat-resistant.
2.Please do not place the product in damp and corrosive places! The ventilation holes can not be blocked by foreign objects, to prevent its heat dissipation effect. Metal objects can not be inserted into the chassis from the ventilation holes, which may cause electric shock!
3.Please note that the panel and its surroundings are extremely hot during the work process. Be careful when operating to prevent scalds! It is recommended that you wear gloves(not included) to avoid burns.
4.Please pay attention to the safety of the object being heated, as excessive temperature may damage the heating components.
5.Please note that the use of heating plates near flammable and combustible materials is prohibited.
6.Please note that when moving or touching the machine, remember to cut off the power and wait for the heating plate to completely cool to room temperature.
7.Please note that this machine is a high-temperature electric heating product. If not in use, be sure to cut off the power to avoid danger and accidents.
8.Please note that in order to extend the lifespan of the heating element and machine, it is prohibited to use the machine continuously for a long time at high temperatures (above 572℉). In general, the continuous working time of the machine should not exceed eight hours.
9.Please be careful not to let the airflow blow directly onto the surface of the heating plate, otherwise, it will affect the heating of the heater.
10.Please allow the slight color difference caused by the shooting light and the 1-3cm error due to manual measurement, and make sure you do not mind before you order.
